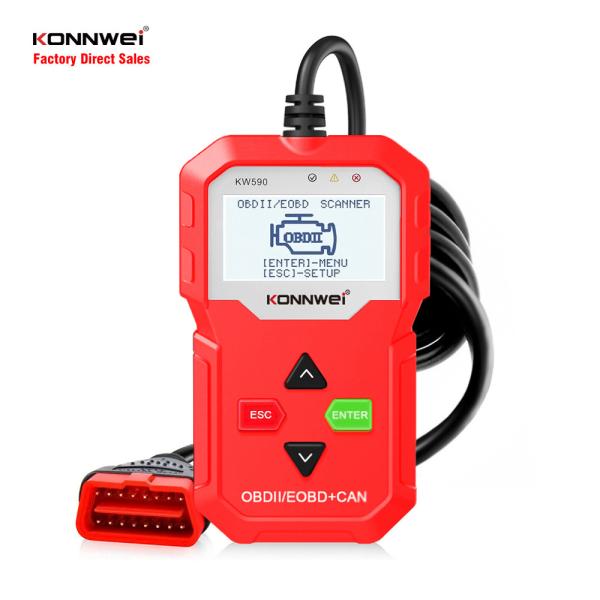

KW590 OBD2/OBDII Diagnostic Car Scanner &Code reader for all cars KONNWEI
konnwei catalog-official- new arrival.pdf
Description
Multi function OBD2 vehicle engine fault code reader: support all OBDII scanner functions: read and clear engine fault code; built-in fault code definition search library; view freeze frame data; read real-time PCM data stream in text or graphic form; on-board monitoring; display I/M status; O2 sensor and evaporative control system test, so that you don't have to go to the car for repair The factory can know the real-time status of the vehicle. Exclusive automatic diagnostic scanning tool: unlike other on-board diagnostic scanners, it only supports inserting information into the vehicle to read information.
The kw590 not only supports storing selected data and printing diagnostic reports, but also supports lifelong free update of software and code definition library, which can be connected to the attached USB cable via PC. Kw590 code scanner also supports viewing vehicle information (VIN, CID and CVN).
Help you pass your car's annual emission test: with konnwei kw590 OBD2 diagnostics, you can quickly detect emissions errors and detect green / yellow / red indicators to inform you of unresolved or existing errors,no need to go to the garage and check the health of the engine system yourself. Help you pass the annual emission test easily. It's made of high quality materials and unique design: Portable anti slip design and 4.7-foot long diagnostic cable allow you to perform professional diagnosis inside or outside the vehicle. Large LCD screen and four logic buttons, easy to operate, direct display of test results. No batteries are required and power is obtained from the vehicle when connected.
Advantages
1. 2.4 screen,easy to use
2. Apply for all 12V OBDII/EOBD cars since 1996
3. Lifetime free update & Data printing
4. Multi-language:English, French, German, Dutch, Spanish, Russian, Portuguese.
5. One click I/M readiness key to read your car's situation immediately
Functions
1. Features the unique patented One-Click I/M Readiness Key for quick State Emissions readiness check and drive cycle verification
2. Bright color coded LEDs and built in speaker provide both visual and audible indication for readiness verification
3. Retrieves generic, manufacturer specific codes, and pending codes
4. Easily determines the cause of the Malfunction Indicator Light( MIL)
5. Turns off Malfunction Indicator Light (MIL), clears codes and resets monitors
6. Displays DTC definitions on the TFT color screen
7. Views freeze frame data
8. Displays monitor and I/M readiness status (emissions)
9. Reads live PCM datastream
10. Retrieves vehicle information(VIN, CIN and CVN)
11. Multilingual menu and DTC definitions
12. Extremely easy to use and highly reliable
13. Internet updateable
14. Support printed via PC
Specification
| Product name | KONNWEI 590 OBDII scanner |
| Dimension | 12.7*7.8*2.0 cm |
| Screen Size | 2.4 Inch backlit screen |
| Material | Plastic |
| Working Temperature | 0 - 60℃ (32-140 ℉) |
| Storage Temperature | -20 - 70℃ (-4 - 158℉) |
| Application | Diagnose cars,Clear fault codes |
| IC chip | STM32F103VCT6 |
Applicable Cars
12V OBDII/EOBD cars since 1996
Support languages
Multi-language :English, French, German, Dutch, Spanish, Russian, Portuguese.
Package list
1 x KW590 EOBD/OBD scanner
1 x User Manual
1 x USB cable
1 x Black carry bag
