Small Light Bluetooth 3.0 25k80 OBD2 Diagnostic Scan Tool Konnwei KW901

Name: Small Light Bluetooth 30 25k80 OBD2 Diagnostic Scan Tool Konnwei KW901
Brand: Konnwei
Price: 1 USD

Wholesale Small Light Bluetooth 3.0 25k80 OBD2 Diagnostic Scan Tool Konnwei KW901 from china suppliers

Brand Name : Konnwei

Model Number : KW901 bluetooth 3.0

Certification : Patent, CE, RoHS, FCC

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, Visa, Paypal, L/C, D/A, D/P

Supply Ability : 50,000pcs obd2 scanner codes per month

Delivery Time : for samples, stocks are available; 5000pcs obd2 scanner codes in a week

Packaging Details : Model :KW901 bluetooth sanner item size (cm): 5*2.8cm package size (cm):12*7.5*4 Item Net weight(kgs):0.028 Package Gross weight(Kg):0.082 qty/cn: 100PCS/ piece, Carton size : 39*25.5*36cm, Carton Weight : 9.2KG/cn

Product Name : KW901 bluetooth mini scanner

Application : Support OBDII compliant 12V car

Main Function : Read Trouble Code

Feature1 : Unique design and premium material

Feature2 : Manufacture factory direct sales ,cheap and high quality

Auxiliary phone software : Torque

Color : 6 colors optional

Language : English defaulted and can select the language you need

Warranty : 1 year

OEM/ODM : Welcome

Contact Now

OBD2 MINI Diagnostic Code Scanner Konnwei KW901 Bluetooth 3.0

Highlight:

Small size, compact structure, wireless connection.
This car scanner uses Bluetooth 3.0 and is suitable for Android phones. The wireless connection is stable, that is, wireless scanning, which is very convenient.
This car scanner can be used to detect 12V gasoline and diesel vehicles (battery voltage detection is not supported). Please note whether it is applicable to your car model or contact us to confirm. Multiple languages can be applied, just download and install the language of the software.
The support agreement is applicable to ISO 9141, KWP2000, SAE J1850, CAN, J1850 VPW, J1850 PWM.
Our car diagnostic scanner has passed quality inspection before leaving the factory. We promise to provide you with brand new high-quality products and fast transportation services.

With proper software installed in the host device, you may have following parameters read out from your vehicle:

Vehicle Speed
RPM
Fuel Consumption*
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim

Key parameter:

Item Name	KONNWEI KW901 bluetooth
Chip	25K80
Connection	Bluetooth 3.0
color	six colors optional
Language	Can use phone to select the language you need
Dimensions	2.75 x 1.25 x 1.2 inches
Warranty	1 year
OEM/ODM	Welcome

KW901 WIFI Specifications:

Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Operating Temperature: -15 to 100 Deg Celsius
Supply voltage(VDD):12V
Work temperature range: -20 ~ +70degree
Storage temperature range:-40 ~ +125degree

Application :

1. Konnwei KW901 bluetooth Used For All 12V Gasoline And Diesel Car After 1996 With OBD2 EOBD Protocol

2. Konnwei KW901 bluetoothSupport the following 9 Protocol :

0)Automatic

1) ISO9141-2(5 baud init,10.4Kbaud)

2) ISO14230-4 KWP(5 baud init,10.4Kbaud)

3) ISO14230-4 KWP(fast init,10.4Kbaud)

4) ISO15765-4CAN(11bit ID,500 Kbaud)

5) ISO15765-4CAN(29bit ID,500 Kbaud)

6) ISO15765-4CAN(11bit ID,250 Kbaud)

7) ISO15765-4CAN(29bit ID,250 Kbaud)

8) SAE J1850 PWM (41.6 Kbaud)

9) SAE J1850 VPW (10.4 Kbaud)

10)default settings(user adjustable)

Packing list:

1 * KW901
1 * User's manual
1 * CD

Pictures:

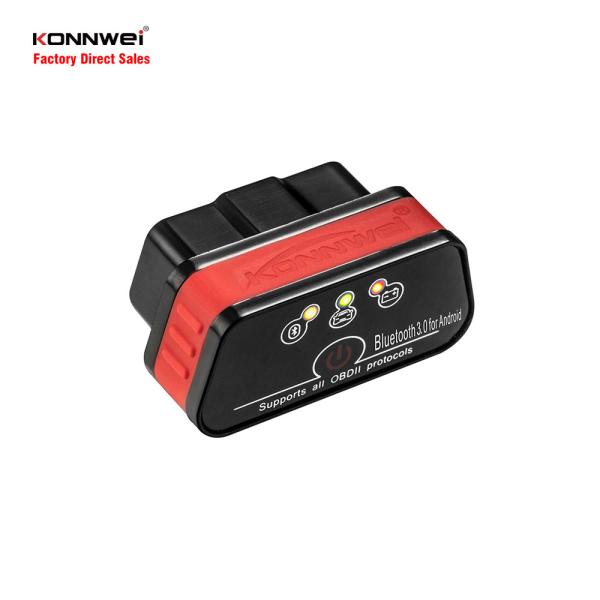

Small Light Bluetooth 3.0 25k80 OBD2 Diagnostic Scan Tool Konnwei KW901

Newest Product :

KONNWEI KW850 multifunction scanner , our best sales item ,click here for more detail.

IC chip	STM32F103VCT6
Main function	Read and erase all BOD2 engine fault codes
Display Mode	2.8 inch TFT HD color screen(320 x 240 dpi), built-in speaker
Feature	upgrade system online life time free print data
Language	Support 8 languages
Support System	XP WIN7 WIN8 WIN10
OEM/ODM	Welcome ,please contact me
color	Black & Red optional
